HT-CU
Cane Unloader Crane
Two-motion double drum unloader trolleys built for sugar mill cane yards, with hydraulic sling bar de-hooking.
Capacity 10 – 25 T SWL
Span 8 – 20 M
Duty class M6 – M8
How it is built

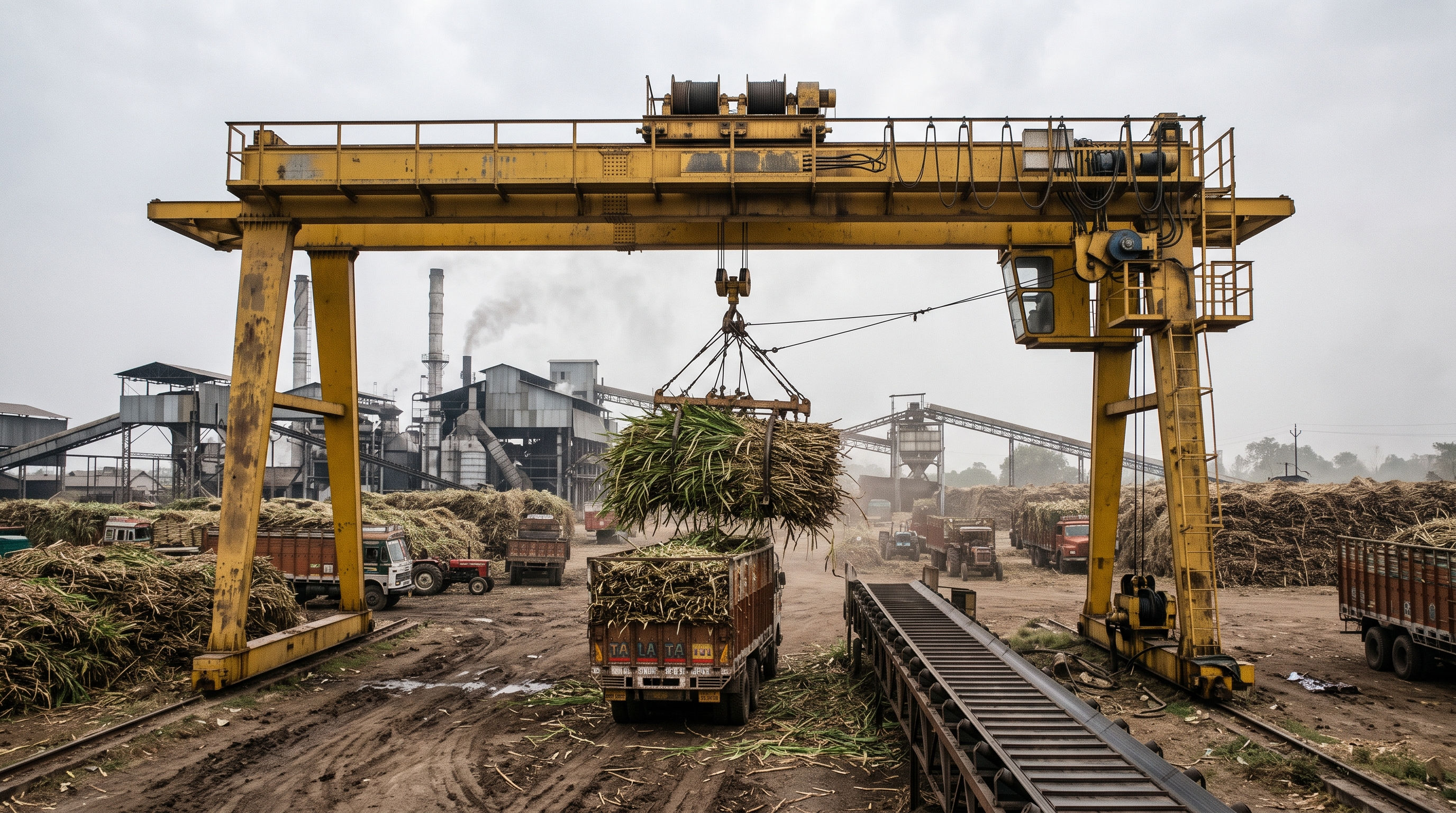

Cane unloaders are purpose-built for the sugar mill yard: a two-motion double drum trolley lifts a loaded sling bar from the trailer and releases it over the cane carrier. Hydraulic sling bar de-hooking removes the manual step that slows down a cane yard and puts operators near a suspended load. We build these both directly for mills and as an OEM partner to heavy engineering firms.
Configuration
- Two-motion double drum trolley
- Hydraulic sling bar de-hooking system
- Rope guides and grooved drums for even spooling
- Heavy-duty brakes sized for continuous season running
- Built to OEM drawings on partnership orders
Technical data
- Capacity (SWL)
- 10 – 25T
- Span
- 8 – 20M
- Motions
- Two (hoist + long travel)
- Drum configuration
- Double drum
- De-hooking
- Hydraulic sling bar
- Duty class (IS 3177)
- M6 – M8
- Season duty
- Continuous, 24 h
Typical applications
- Sugar mill cane yards
- Cane carrier feeding
- Bagasse and bulk yard handling
Request for quotation
Specify a cane unloader for your duty
Ranges above are the envelope we build within. Send your actual capacity, span and lift height and we will engineer to it.
