HT-STS

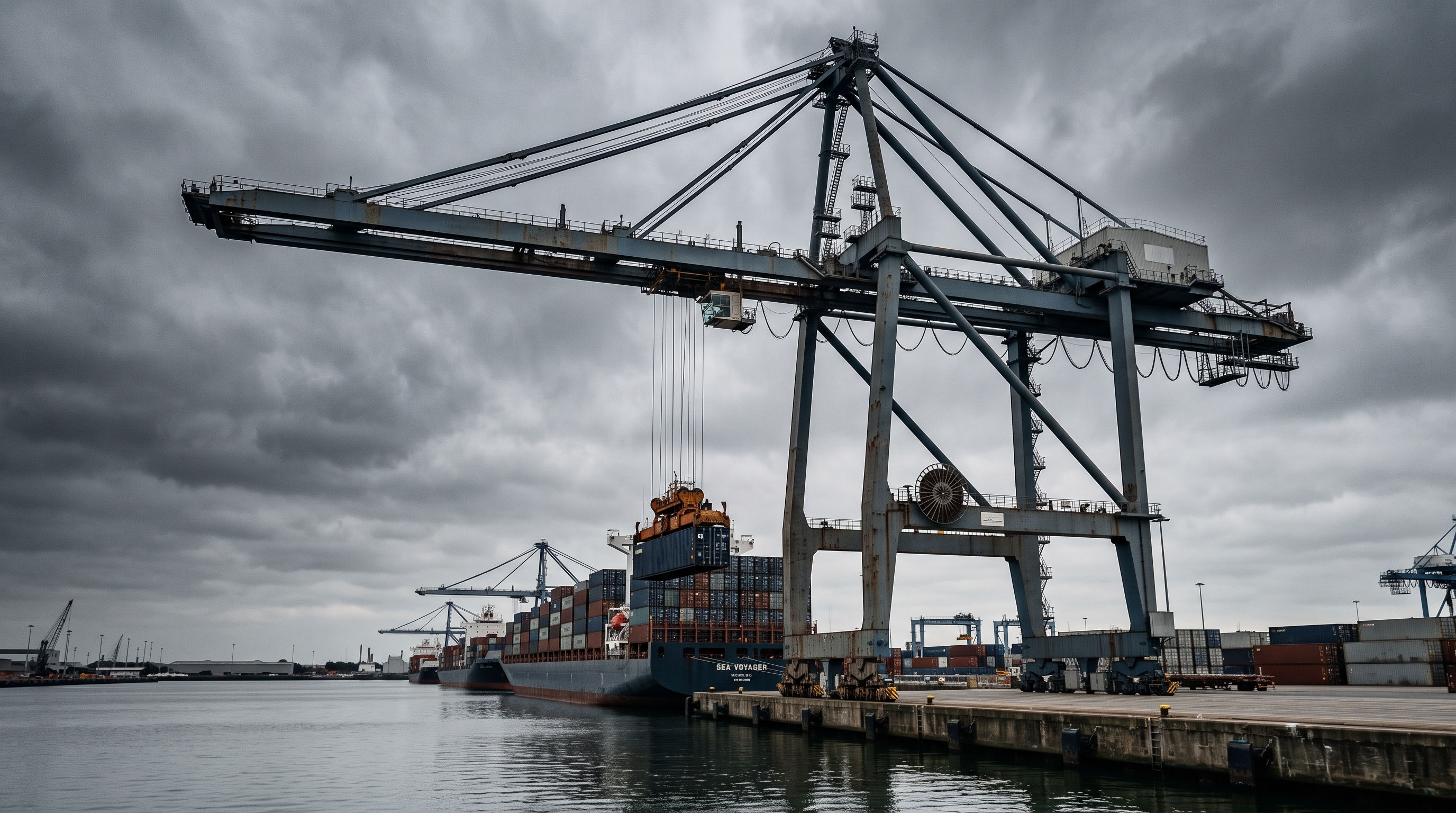

Ship-to-Shore Crane
Quayside container handling — the crane that sets the berth productivity of the whole terminal.
Capacity 40 – 65 T
Span 16 – 30 M rail gauge
Duty class A6 – A8
How it is built
Ship-to-shore cranes work the quay face, moving containers between vessel and apron. Outreach has to clear the vessel beam you intend to serve, and backreach has to cover the apron lanes behind the rail. We engineer to the berth: rail gauge, wheel load limits and the wind and seismic case for the site.
Configuration
- Telescopic twin-lift spreader
- Anti-sway control on trolley and hoist
- Storm anchors, tie-downs and rail clamps
- Cable reel power feed
- Operator cabin with quay-face visibility
Technical data
- Rated capacity (under spreader)
- 40 – 65T
- Outreach
- 35 – 65M
- Backreach
- 12 – 20M
- Lift above rail
- 30 – 40M
- Rail gauge
- 16 – 30M
- Hoist speed (rated)
- 60 – 90m/min
- Gantry travel
- 40 – 45m/min
Typical applications
- Container terminals
- Multipurpose berths
- Bulk and break-bulk quays
Request for quotation
Specify a sts for your duty
Ranges above are the envelope we build within. Send your actual capacity, span and lift height and we will engineer to it.
